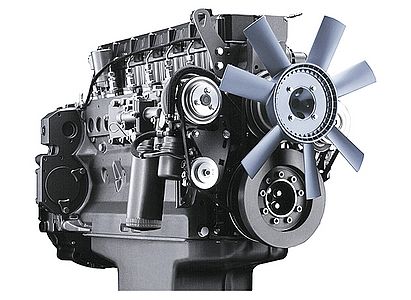

BF 6 M 1013 E (Agri)
Engine for agricultural machinery.
Modern water-cooled 6-cylinder in-line engine. Turbocharging with charge air cooling (BFM1013EC/P).
High-pressure fuel injection up to 1600 bar.
Electronic engine governor with diagnostic facilities as option.
100% PTO capability at flywheel end and front end.
Three options for installation of gear-driven hydraulic pumps.
Long maintenance intervals and user-friendly maintenance design.
Customer service available worldwide.
| Technical data | |
|---|---|
| Emission norms | EU II, US T2 |
| Number of cylinders | 6 |
| Bore | 108 mm |
| Stroke | 130 mm |
| Displacement | 7.2 l |
| Maximum nominal speed | 2300 rpm |
| Power output | 137 kW |
| at speeds | 2300 rpm |
| Max. torque | 702 Nm |
| at speeds | 1400 rpm |
| Min. idling speed | 800 rpm |
| Specific fuel consumption | 208 g/kWh |
| Length | 1177 mm |
| Width | 574 mm |
| Height | 1001 mm |
| Weight | 570 kg |
