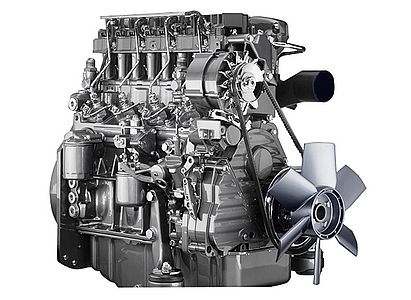

F 2 M 2011
2-cylinder turbocharged engine.
Oil-cooled (with conventional cooling system).
13% more power in comparison to the successor 1011F.
100% extended belt change interval.
PTO for hydraulic pump drive is increased by 55% at 28 kW/2800 min-1.
All service points on one engine side.
Compact engine design.
| Technical data | |
|---|---|
| Emission norms | EU II, US T2 |
| Number of cylinders | 2 |
| Bore | 94 mm |
| Stroke | 112 mm |
| Displacement | 1.6 l |
| Maximum nominal speed | 2800 rpm |
| Power output | 24.2 kW |
| at speeds | 2800 rpm |
| Max. torque | 93 Nm |
| at speeds | 1700 rpm |
| Min. idling speed | 900 rpm |
| Specific fuel consumption | 224 g/kWh |
| Length | 328 mm |
| Width | 451 mm |
| Height | 683 mm |
| Weight | 168 kg |
