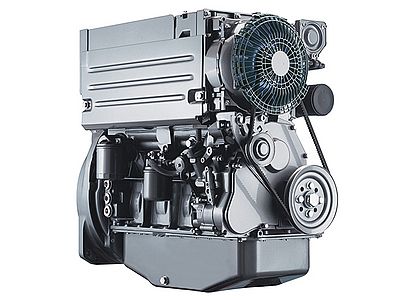

F 4 L 2011
Oil-cooled 4-cylinder aspirated engine in inline construction with integrated cooling system.
4-cylinder also with turbocharging.
Direct injection with single injection pumps and optional electronic governor.
Low fuel consumption due to optimised combustion.
Long oil change intervals of up to 1000 hours.
Minimised running costs due to low maintenance need and little wear.
High reliability combined with durability. No corrosion or cavitation due to oil cooling and lubrication.
A very good load response ensures an immediate power supply.
| Technical data | |
|---|---|
| Emission norms | EU II, US T2 |
| Number of cylinders | 4 |
| Bore | 94 mm |
| Stroke | 112 mm |
| Displacement | 3.1 l |
| Typical generator power at 50 Hz / 1500 rpm | |
| Typical generator power (COP) | 26 kW |
| Typical generator power (PRP) | 28 kW |
| Typical generator power (LTP) | 29 kW |
| Typical generator power at 60 Hz / 1800 rpm | |
| Typical generator power (COP) | 31 kW |
| Typical generator power (PRP) | 33 kW |
| Typical generator power (LTP) | 35 kW |
| Length | 868 mm |
| Width | 588 mm |
| Height | 722 mm |
| Weight | 293 kg |
